Basic Info.
Model NO.
YPA
Automatic Power off
Yes
Power
>1500W
Style
Temperature Regulating Iron
Certification
Ce
Soleplates Material
Sheet
Cylinder
Stainless Steel
Roller
1 to 4
Drum Diameter
800mm
Used for
Hotel Sheets
Warranty
12 Months
Transport Package
Wooden Case
Specification
3850× 2500× 1500
Trademark
TONG YANG
Origin
China
HS Code
8451300000
Production Capacity
100PCS/Month
Product Description

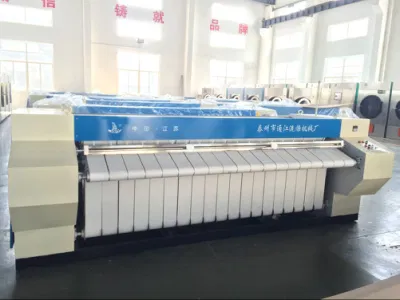

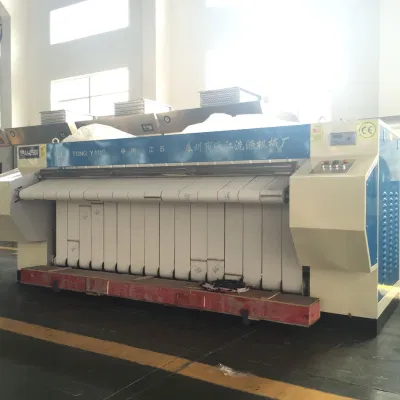

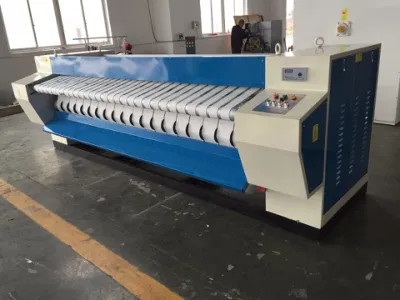

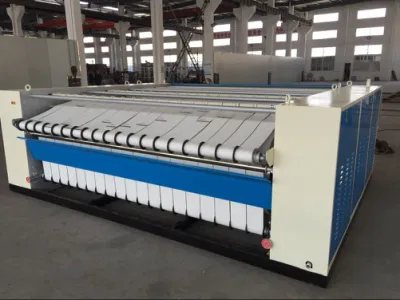

Flatwork ironer, flatwork ironing machine,
1. Automatic ironing machine, horizontal structure, easy to operate and high-quality ironing effect.
2. Steam or electrical heating.
3. Ironing for various of bed sheets, towel, tablecloth, curtain or liens which are usually used in hotel, restaurant, school, hospital, counterpane factory and laundry house, etc.
4. According to the fabric width, the roller length of industrial ironing machine can be 1800mm, 2500mm, 2800mm and 3000mm, also we can make the length less than 1800mm as per your requirements. And the roller can be single, double and three. Surely, the ironing speed of double rollers and three rollers ironing machine is quicker than that of single roller ironing machine
5. The precise structure of double chests, springs and heating proof felt ensure the rollers to keep enough electricity and spring cushion, which creates the surface well-touched. Unique lever balance pressure device and the cylinder pressure adjust system on both sides. Unique whirl steam flow heating system for the connecting plate improves the ironing result.
6. Reliable and safe operation system
With a finger guard, once operator touches the plate the machine will stop immediately.
Anti-curliness device can prevent the fabrics curling in the chests.
With steam and compressed air control system, once the pressure is too low the system will alarm.
Many emergency stop button fixed on the ironer. Any buttoned pressed, the ironer will stop to run.
The pneumatic system can raise and lock up the rollers to prevent the fabrics and the proof felt damaged when the machine stops running in case of no power.
A big touch screen controller with interactive interface on the machine is easy for operator to program according to different requirements.
7. High efficiency and Low energy consumption
The chests have a large angle heating surface, which can improve the heating efficiency.
The ironer adopts a single drive motor which can save energy. The frequency converter system can adjust the ironing speed from 8~40 m/min with the change of temperature, type of fabrics, moisture, etc.
The chests adopt a unique heating chamber recycle system with many strips on double sides. Steam can flow in the chamber with high efficiency. In addition, the chests are covered by thermal insulators to reduce heat losses.
8. With CE and ISO9001 certificates.
Specification:
Apply in: Laundry shop / Hotel accessory products:
1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.
We can provide the professional proposal for you according to your situation.
Our service:
1. Integrating development, production, sale and service.
2. Complete modern production machines and high-level staff members.
3. Dedicated to designing and manufacturing dry cleaning machine,washing machine,dryer machine,folder machine,ironer machine,extra-laundry equipment etc.
4. High quanlity products, competitive price,and excellent customer services are always our ultimate.
5. Create a win-win business relationship with you in the near future.
Company information:
1. Guangzhou Jinzhilai Washing Equipment Co.,Ltd was set up in 2006,we are a leading and professional laundry equipment manufacturer in China.
2. Our main products: Industrial washing machine, tumble dryer, ironing machine, folding machine,dry cleaning machine, etc.
3. Our products are popularly used in hotels,hospitals,restaurants,schools,laundries, etc.
FAQ
Q1. Are you a factory or a trading company?
A: We are a leading factory here,OEM is available.
Q2. How can I know you're real and your product is good.
If you want to cooperate with us sincerely,we can provide our other customers' contact information to you. They can prove that.
Q3. Our power supply is 220v, 3phase, 60hz, can you provide it?
A: Yes,We can customize the power supply for you.
Q4. What's your machines' warranty?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under 12 months warranty with defects from manufacturer.
All electronic parts and components are also under this guarantee.
Q5. What is your delivery time?
A: Our delivery time is about 15-30 days after receiving deposit.
1. Automatic ironing machine, horizontal structure, easy to operate and high-quality ironing effect.
2. Steam or electrical heating.
3. Ironing for various of bed sheets, towel, tablecloth, curtain or liens which are usually used in hotel, restaurant, school, hospital, counterpane factory and laundry house, etc.
4. According to the fabric width, the roller length of industrial ironing machine can be 1800mm, 2500mm, 2800mm and 3000mm, also we can make the length less than 1800mm as per your requirements. And the roller can be single, double and three. Surely, the ironing speed of double rollers and three rollers ironing machine is quicker than that of single roller ironing machine
5. The precise structure of double chests, springs and heating proof felt ensure the rollers to keep enough electricity and spring cushion, which creates the surface well-touched. Unique lever balance pressure device and the cylinder pressure adjust system on both sides. Unique whirl steam flow heating system for the connecting plate improves the ironing result.
6. Reliable and safe operation system
With a finger guard, once operator touches the plate the machine will stop immediately.
Anti-curliness device can prevent the fabrics curling in the chests.
With steam and compressed air control system, once the pressure is too low the system will alarm.
Many emergency stop button fixed on the ironer. Any buttoned pressed, the ironer will stop to run.
The pneumatic system can raise and lock up the rollers to prevent the fabrics and the proof felt damaged when the machine stops running in case of no power.
A big touch screen controller with interactive interface on the machine is easy for operator to program according to different requirements.
7. High efficiency and Low energy consumption
The chests have a large angle heating surface, which can improve the heating efficiency.
The ironer adopts a single drive motor which can save energy. The frequency converter system can adjust the ironing speed from 8~40 m/min with the change of temperature, type of fabrics, moisture, etc.
The chests adopt a unique heating chamber recycle system with many strips on double sides. Steam can flow in the chamber with high efficiency. In addition, the chests are covered by thermal insulators to reduce heat losses.
8. With CE and ISO9001 certificates.
Specification:
| Type Pated voltage | YPA I-1800 | YPA I-2500 | YPA I-2800 | YPA II-2800 | YPA II-3000 |
| Ironing scope(mm) | ≤ 1800≤ 3 | ≤ 2440≤ 3 | ≤ 2800≤ 3 | ≤ 2800≤ 3 | ≤ 3000≤ 3 |
| Tumbler specifiation(mm) | Φ 8000× 1800 | Φ 800× 2500 | Φ 800× 2800 | Φ 800× 2800 | Φ 800× 3000 |
| Steam pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Ironing sreed of fabric(m/min) | 0-7 | 0-7 | 0-7 | 0-20 | 0-20 |
| Admission hole diameter(mm) | 25 | 25 | 25 | 32 | 32 |
| Steam consumption Capacity(kg/h) | 50 | 70 | 80 | 150 | 180 |
| Motor Power(Kw) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Overall dimension(mm) | 2800× 1550× 1500 | 3500× 1550× 1500 | 3800× 1550× 1500 | 3850× 2500× 1500 | 4050× 2500× 1500 |
| Drum quantity | 1 | 1 | 1 | 2 | 2 |
Apply in: Laundry shop / Hotel accessory products:
1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.
We can provide the professional proposal for you according to your situation.
Our service:
1. Integrating development, production, sale and service.
2. Complete modern production machines and high-level staff members.
3. Dedicated to designing and manufacturing dry cleaning machine,washing machine,dryer machine,folder machine,ironer machine,extra-laundry equipment etc.
4. High quanlity products, competitive price,and excellent customer services are always our ultimate.
5. Create a win-win business relationship with you in the near future.
Company information:
1. Guangzhou Jinzhilai Washing Equipment Co.,Ltd was set up in 2006,we are a leading and professional laundry equipment manufacturer in China.
2. Our main products: Industrial washing machine, tumble dryer, ironing machine, folding machine,dry cleaning machine, etc.
3. Our products are popularly used in hotels,hospitals,restaurants,schools,laundries, etc.
FAQ
Q1. Are you a factory or a trading company?
A: We are a leading factory here,OEM is available.
Q2. How can I know you're real and your product is good.
If you want to cooperate with us sincerely,we can provide our other customers' contact information to you. They can prove that.
Q3. Our power supply is 220v, 3phase, 60hz, can you provide it?
A: Yes,We can customize the power supply for you.
Q4. What's your machines' warranty?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under 12 months warranty with defects from manufacturer.
All electronic parts and components are also under this guarantee.
Q5. What is your delivery time?
A: Our delivery time is about 15-30 days after receiving deposit.
