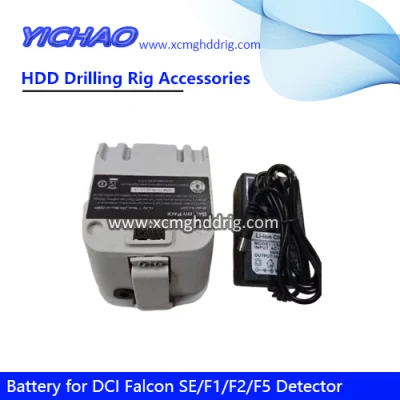

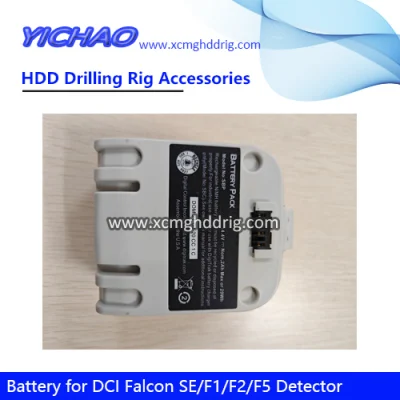

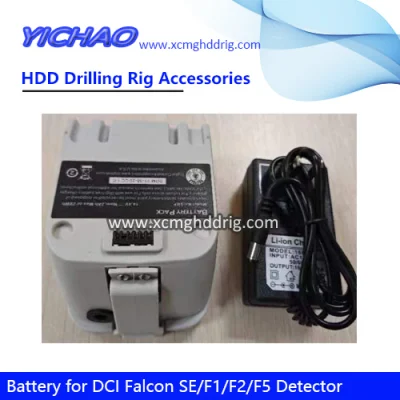

HDD Drilling Rigs Rechargeable NiMH Locater Battery for Dci Falcon Se/F1/F2/F5 Detector

Rechargeable NiMH battery pack:must be recycled or disposed of properly.
For industrial use only.
For use withDigiTrak battery charger.
See owners's manual for addttional instructions.
DOM:21-08-20 CC 1 C
14.4V,Nom,2Ah Max or 29Wh

Falcon F1 Introduction

The easy to use F1 provides Falcon technology at an entry-level price. Sidestep active interference with new V2 Dual-Power capability and reduce overhead with rechargeable lithium-ion transmitter batteries. The F1 has everything you need to take on simple everyday jobs with ease.

Features of the Falcon F1

Increased depth and data Range
100/125 ft (30/38m)combined with more frequencies to get more jobs done.
Quick Scan Pair
With just two clicks, it's now easier to scan, pick and pair your locator to custom frequencies.
Dual Power Mode Transmitters
Two easily selectable power modes for deeper bores, longer battery life and faster data rates.
Falcon Technology
Scans over 60 frequencies to customize your locator for your job site
Remote Displays
Use with Falcon Compact Display or with Aurora Remote display for access to Target steering.
Easy to Upgrade
With the DigiTrak Falcon F1 you can upgrade to Falcon F2+ at any time, and it's quick, easy, and affordable.

Reasons to Consider the Falcon F1

The all-new DigiTrak Falcon F1 is the perfect solution for everyday jobs where advanced frequency optimization and electronic logging are not required. With an easy-to-use frequency range from 9.0KHZ to 13.5KHZ, the Falcon F1 is quick to set up, easy to navigate and now features double the depth range of previous Falcon F1 systems.

Improved performance and features - Let's take a look at the highlights.

New Transmitters features - The new dark blue transmitter tube is now featured across the DigiTrak line. The Falcon F1 Transmitter broadcasts multiple frequencies simultaneously to ensure interruption-free operation. Unlike other HDD transmitters that only broadcast a single frequency at a time.

• Compatible with lithium-ion rechargeable batteries - Our new transmitter adapter is designed specifically for a single 21700 Lithium Rechargeable (LiR) battery with built-in protection. This adapter incorporates a lock-out and is designed to fit the Blue tube DigiTrak transmitters.
• Features two power modes - Standard Power mode offers double the depth range from previous generations, While Low Power mode offers Faster data rates & longer transmitter battery life.
• Made in USA - Our FT1 V2 Transmitter is proudly made in the USA.

Simplified, Easier to Use Menus - The Falcon F1 menu has been simplified and streamlined to guide operators quickly and easily through the set-up process and make commonly used features more accessible.

• Quick Scan Pair - This standout feature gives you a two-click custom setup process without sacrificing the signal optimizing and interference fighting features of Falcon Technology. When you initiate Quick Scan Pair, your system will scan the area for signal noise in the 9.0KHZ and 13.5KHZ range and automatically select the best frequencies within that range for your project. Those frequencies, along with your chosen power mode are then easily paired to the transmitter to give you a customized solution for each project.
• New Locate Mode - Falcon F1 locate mode allows locator/operator to switch seamlessly between Standard ball in the box locating and Look-Ahead locating.

TrakStand Compatible - The Falcon F1 is compatible with TrakStand and features a preprogrammed height above ground setting for easy setup and seamless transition from TrakStand to Handheld. As well as Target Steering Capable with Falcon+ TrakStand HAG
Target Steering - Falcon F1 now features Target Steering for an easy hands-free operation for locators and precise 360-degree steering guidance on the Aurora remote display.

• Target your Depth - Program your target depth and place the receiver at the intended target. The Remote display will automatically shift to target steering mode
• Aurora Remote display Integrated - gives the operator easy-to-follow and intuitive guidance needed to safely advance and steer the drill head to its intended target.
• TrakStand Compatible - Target steering can be used with or without TrakStand. Height above ground easily engages to account for TrakStand Height. No tape measure or bending over required.
