Basic Info.
Product Description
CE, FCC certified Streamline structure security door with trackless operation
Features:
Gate Performance
1. Multi-language LED (optional).
2. Power: 300W/400W/500W; 220V/110V ; 60HZ/50HZ
3. Surrounding temperature: -40~80
4. Moving speed: 15m/min
5. Material: High strength aluminum alloy
6. Color available
7. Type of guiding track: trackless, single track
8. The drive mechanism is used Intelligent AC Head Unit, intelligent digital navigation technology,
trackless and automatic skew correction (optional)
9. The unique infrared collision avoidance system ensures safety of passengers and vehicles
10. Wind-resistant device enable the electric gate to operate in strong winds
11. The running wheels show no apparent wear and tear after a 300,000 time swing test over a
10m distance. Sand or pebbles in rainy or stormy weather do not affect the normal operation
of the electric gate.
12. Increasing safety and reliability of system operation through whole-digit circuit control
13. Elegant key-type clutch can easily change to manual mode during a power outage by insert a
special key into the hole of the clutch and turning it at 90 degree.
14. The alarm function works while someone climb the gate (optional)
15. Electronic soft starter and mechanical buffer device ensures smooth run.
| Product Specification | |||||||
| H | W | W1 | W2 | W3 | W4 | W5 | |
| Warrior B Series | 1.33/1.4/1.5/1.6/1.7/1.8m | 475mm | 55mm | 265mm | 372m m | 615mm | 35mm |
| Warrior B Series (Flat Top) | 1.3/1.4/1.5/1.6/1.7/1.8m | 475mm | 55mm | 265mm | 372mm | 615mm | 35mm |
| Electrical Specification | ||||
| Main Frame: | Inner Cross Tube: | Voltage: | Operation Temperature: | Relative Humidity: |
| 58*35*0.9 (Aluminum Alloy) | 40*25*1.2 (Aluminum Alloy) | 220V ±10% , 50/60Hz | -40°C~80°C | ≤90% |
| IP Rating: | Insulation Grade: | Moving Speed: | Receiver Frequency: | Remote Distance: |
| IP 44 | E | 15m/min | 433MHz | 50m(Empty Space) |
Structure
1. Intelligent self-align ( ISA ) Motors
Intelligent self-align ( ISA ) Motors, 35 meters trackless operation for gate ( 10 years warranty, one to one exchange service )
2. The LED screen & Anti Collision IR Sensor
- For the led screen, it support 250 words slogan, you can put your preferred words.
- Our engineer place one pair sensor for your gate to get the anti-collision.

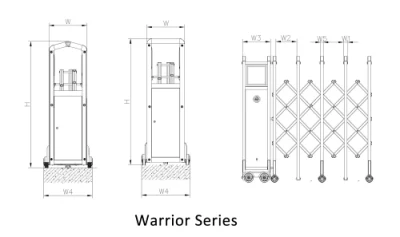

The dimention of the product
CE certification
Customized Package
The goods will be packed by the wooden board, the outside is the iron frame, it is more stable for transport.
Q&A
Q: How to place the order?
A: Once we confirmed your requirement, we will send a PI to you. After you signed it, we will arrange the product.
Q: How to make the payment?
A: We use T/T to receive the payment. 30% deposit will be paid in advance, and 70% balance before shipping.
Q: How to make a transport for the goods?
A: 1. When the term is EXW, we will packed the goods in the warehouse, waiting for your freight agent arrangement.
2. When the term is CFR and CIF, we will arrange the transport for you. And the B/L of will be sent to you once we get it.
Q: How to get the after-sale service?
A: Any question of after-sale service, you can forward them to us by email or call, we will reply to you within 24 hours.
Q: How long about the warranty?
A: We provide 10 years warranty for the motor, 12 months warranty for the parts. And we built a professional after-sale team, best service will be provided for you.
