Product Description
| Model | HYLW1000S, HYLW1500S, HYLW2000S, HYLW3000S |

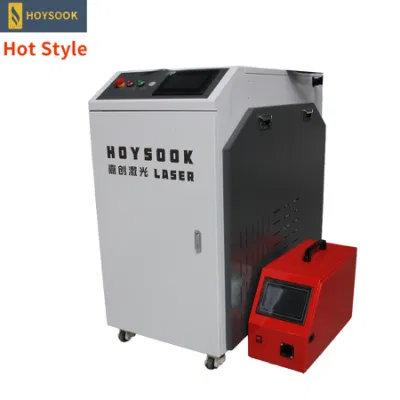

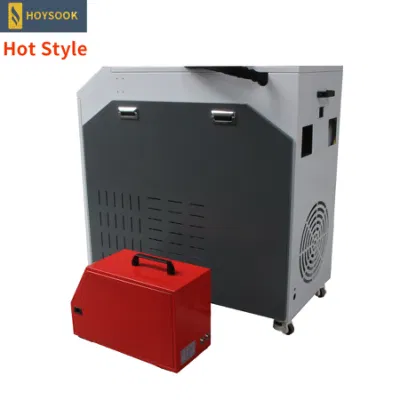

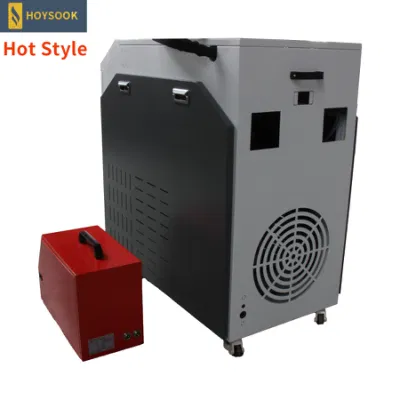

| Name | Hand-held Laser Welding Machine |
| Laser Source | IPG/Raycus/Max/Reci |
| Voltage | 220V/380V |
| Cable Length | Standard 10m, possible : 15m |
| Laser Power | 1000W, 1500W, 2000W, 3000W |
| Wavelength | 1064/1070nm |
| Working Principle | Continuous or modulated |
| Speed range | 0~120mm/s |
| Water Cooler | Industrial thermostatic water chiller |
| Working environment temperature | 15 ~ 35 ºC |
| Humidity of the working environment | < 70% No condensation |
| Welding thickness / depth | 0.5-3mm |
The field of application of handheld laser welding is very wide. It can be used in various sweat and fields such as automobile sheet metal, chassis, water tank, distribution box and other cabinets, cabinets, kitchen and bathroom, stainless steel door and window guardrails, scaffolding, etc.
Compared with traditional argon arc welding and electric welding processes, hand-held laser welding is energy-saving (about 80% to 90% less electricity than argon arc welding), and the welding speed of metal materials such as thin stainless steel plates, iron plates, and aluminum plates , Welding quality, post-processing (which can greatly reduce the labor cost of polishing and leveling processes), etc., have obvious advantages, so there is a strong potential to replace traditional processes.
About Shandong Hoysook Laser Manufacturing Co. LTD
20 years of factory production experience
3 year machine warranty
More than 100 countries export experience
30,000 square meters factory area
Q: Do you have ce documents and other customs declaration documents?.
A: Yes, we do. We have a one-stop service for you. First, we will show you. After shipment, we will give you ce/packing list/commercial invoice/sales contract for customs clearance.
Q: What about the warranty?
Q: Do you have after-sale service?
A: Yes, we are happy to advise, and we have skilled technicians all over the world. We need your machines to run to keep your business running.
